- Cost-effective lead-acid battery is adopted, which has the characteristics of high-rate discharge performance, no ignitability, large temperature window, zero pollution, high recycling rate, and long service life.
- The maintenance-free wet disc brake system provides excellent brake performance. The compact structure, small deflection, and dust-proof and water-proof design of the casting steering axle endow the forklift with long service life and working reliability.
- Advanced motor drive system with compact structure generates better driving and climbing performance, higher torque and more powerful forces.
- Equipped with main and auxiliary hydraulic oil tanks. The enlarged fluid capacity ensures the steady operation of hydraulic system while the filter unit and extended cooling area make for excellent heat dissipation performance and optimum fluid cleanliness.

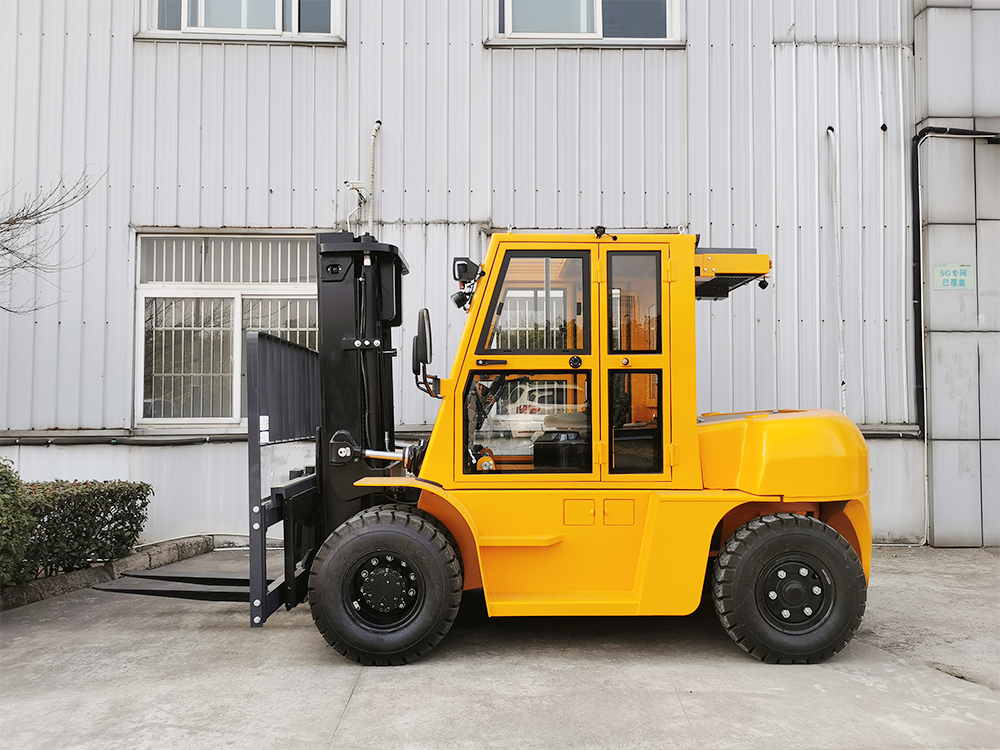

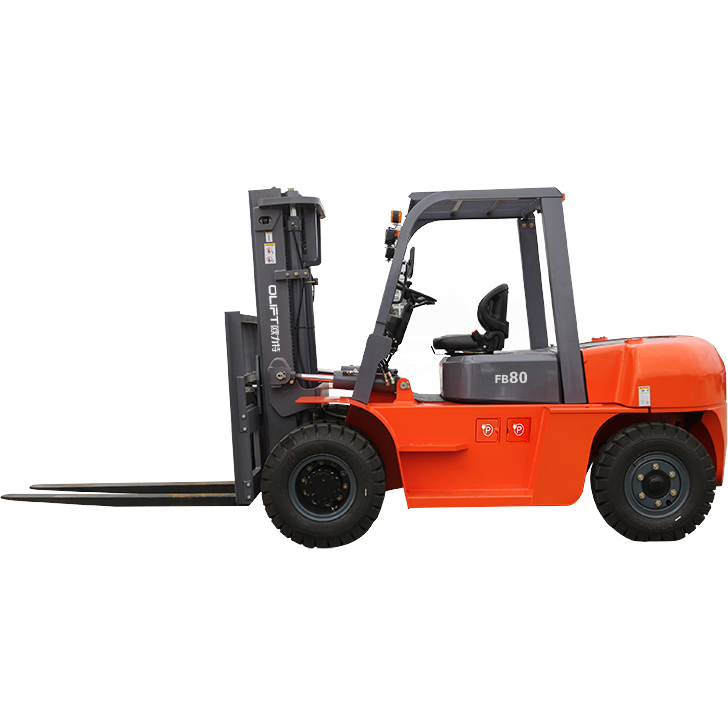

| Model | FB80 | |
| Rated Capacity | kg | 8000 |
| Load Center Distance | mm | 600 |
| Power Type | Battery | |
| Wheel Base | mm | 2350 |
| Wheel Number(Front/Rear) | 4/2 | |
| Front Tread | mm | 1470 |
| Rear Tread | mm | 1190 |
| Tyre(Front) | 8.25-15-14PR | |
| Tyre(Rear) | 28*9-15 | |
| Front Overhang | mm | 592 |
| Mast Tilting Angle,Front/Rear | 6/9 | |
| Height With Mast Retraction | mm | 2500 |
| Free Lifting Height | mm | 200 |
| Max.Lifting Height | mm | 3000 |
| Max.Height After Lifting | mm | 4420 |
| Overall Guard Height | mm | 2400 |
| Fork Size:Length X Width X Thickness | mm | 1220×170×70 |
| Overall Length(Fork Excluded) | mm | 3462 |
| Overall Width | mm | 1995 |
| Turning Radjus | mm | 3180 |
| Ground Clearance Of Mast | mm | 160 |
| Ground Clearance Of Wheel Base Center(Loaded) | mm | 170 |
| Lateral Fork Adjustment Max./Min | mm | 1840-300 |
| Travelling Speed (Loaded/Unloaded) | km/h | 13/15 |
| Lifting Speed (Loaded/Unloaded） | mm/s | 320/420 |
| Lowering Speed | mm/s | <600 |
| Gradeability (Loaded) | % | 15 |
| Self Weight | Kg | 11200 |
| Battery Voltage /Capacity | V/Ah | 80/840 |
| Battery Weight | Kg | 2150 |
| Driving Motor Power-60 Minutes | Kw | 25 |
| Lifting Motor Power(S315%) | Kw | 2X26 |
| Driving Motor Control Mode | Full AC | |
| Lifting Motor Control Mode | Full AC | |
| Service Brake/Parking Brake | Hydraulic /Mechanica | |
| Hydraulic System Working Pressure | Mpa | 20.0 |
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail.
