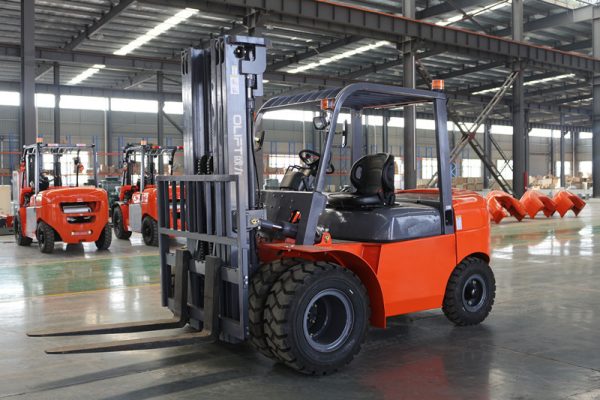

FD50 5 tons diesel forklift

Standard domestic or imported engines, customers can choose Isuzu, Mitsubishi, Cummins and other brands. Powerful and reliable.
Heavy-duty drive axle, high-strength main reduction and planetary wheel side reduction; safe and reliable operation under heavy load and severe working conditions.
Adopt advanced load sensing technology to provide flow for the steering system, save energy and protect the environment, and reduce system heat.

Category:
  1. Power system

Standard domestic or imported engines, customers can choose Isuzu, Mitsubishi, Cummins and other brands. Powerful and reliable.

  1. Heavy-duty drive axle

Heavy-duty drive axle, high-strength main reduction and planetary wheel side reduction; safe and reliable operation under heavy load and severe working conditions.

  1. Hydraulic system

Adopt advanced load sensing technology to provide flow for the steering system, save energy and protect the environment, and reduce system heat.





Model   FD50
Power Type   Diesel
Rated Capacity kg 5000
Load Centre mm 600
Lift Height mm 3000
Fork Size(L×W×T) mm 1220×150×60
Mast Tilt Angle(F/R) Deg 6°/12°
Front Overhang (Wheel center to fork face) mm 590
Ground Clearance(Bottom of mast) mm 200
Turning Radius (outside) mm 3250
Max.Gradeability (No load/Full load) % 20
Wheelbase mm 2250
Service weight kg 8150
Overall Dimension Length to face of fork(Without fork) mm 3440
Overall Width mm 2010
Mast Lowered Height mm 2500
Mast Extended Height(With backrest) mm 4415
Overhead Guard Height mm 2430
Speed Travel (Full load) km/h 30
Lifting (Full load) mm/s 500
Tire Front mm 8.25-15-14PR
Rear mm 8.25-15-14PR
Battery Voltage/Capacity V/Ah (12/80) x 2
Engine Model   6BG1-02 6110
Manufacture   ISUZU XICHAI
Rated output/r.p.m. kw 82.4/2000 83/2000
Rated torque/r.p.m. N·m 416/1600 450/1400-1500
No.of Cylinder   6 6
No.of Cylinder mm 105×125 110×125
Displacement cc 6494 7120
Fuel Tank Capacity L 125 125
Transmission Type   Hydraulic Hydraulic
Stage(FWD/RVS)   2/2 2/2



With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
