- Standard equipped with Heding high quality lithium battery. Long service life, five-year’s warranty, zero pollution, maintenance free.1.5-2 hours for full charge, more suitable for multi-shift work.
- The large LCD screen can directly display the operating state of the vehicle.It also has the function of fault display and maloperation alarm.
- LMH three gear mode. Customers can select different mode based on their working condition to achieve higher efficiency. Optional steering speed control function helps to reduce the risk of machine rolling.

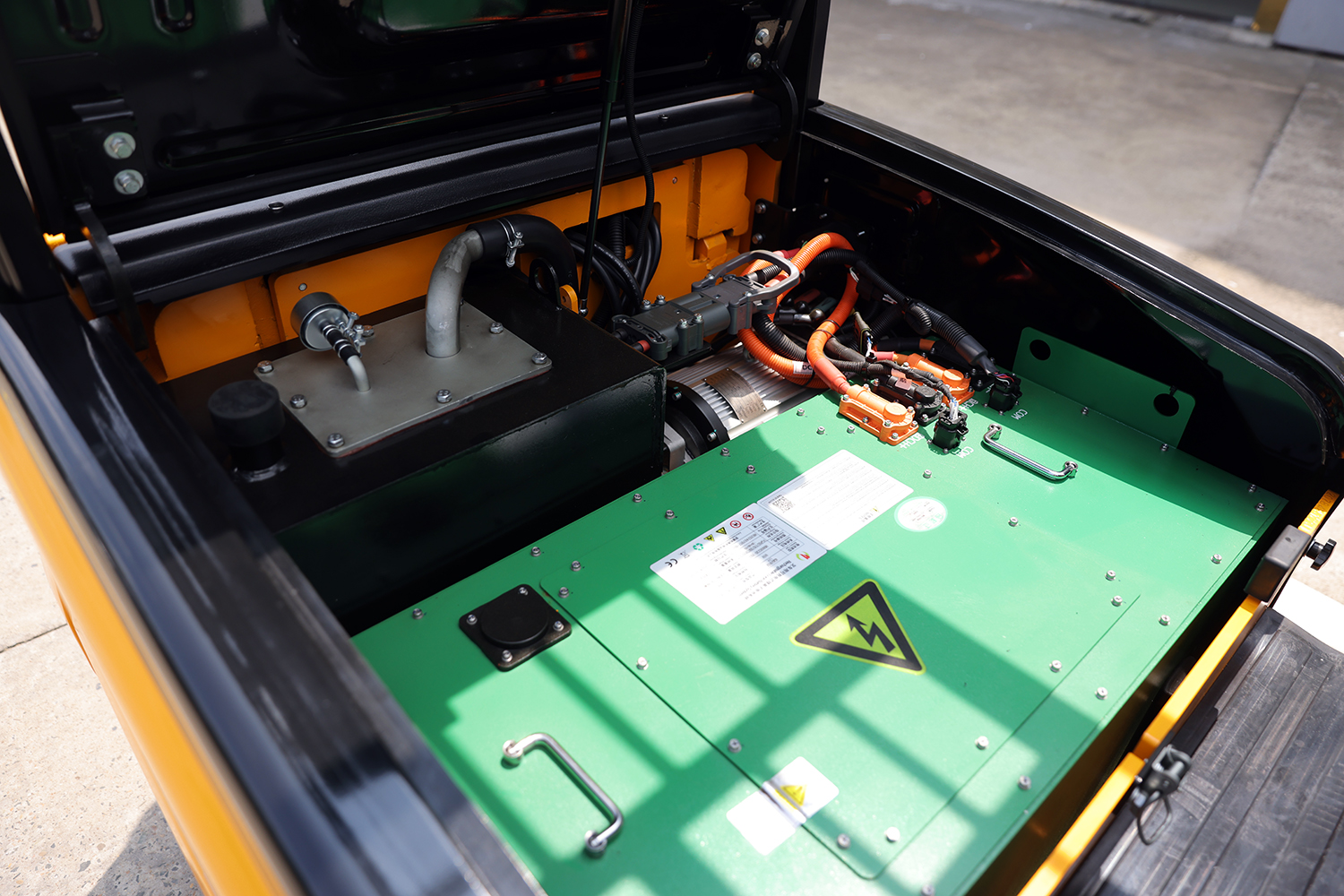

- The nearly 90large opening angle of the battery cover and the flexibly dismounted side cover facilitate the battery installing job and line maintenance job greatly.

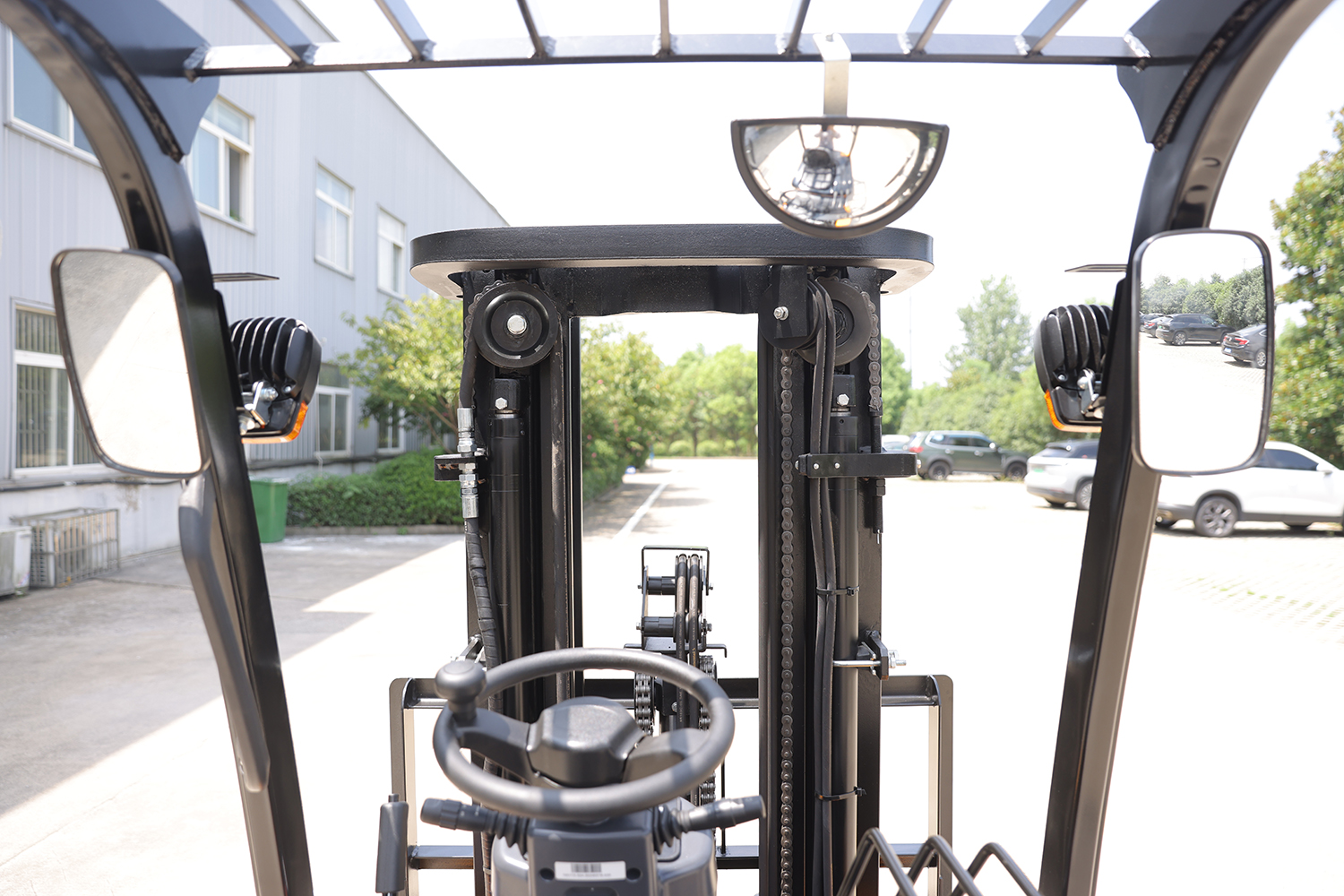

- The four-point design provides greater stability, enhancing operational safety.The electric drive system responds quickly and is easy to maneuver, making it suitable for operations in narrow spaces.

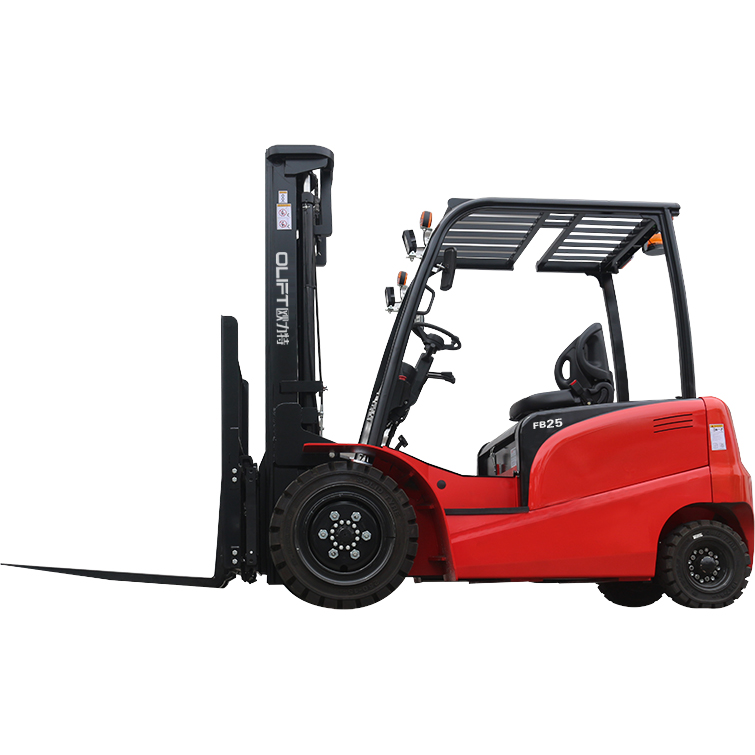

| Model | FB25 | |
| Rated Capacity | kg | 2500 |
| Load Center Distance | mm | 500 |
| Power Type | Electric | |
| Wheel Base | mm | 1500 |
| Wheel Number(Front/Rear) | 2×/2 | |
| Front Tread | mm | 970 |
| Rear Tread | mm | 950 |
| Tyre(Front) | 7.00-12-12PR | |
| Tyre(Rear) | 18X7-8PR | |
| Front Overhang | mm | 468 |
| Mast Tilting Angle,Front/Rear | 6/12 | |
| Height With Mast Retraction | mm | 1995 |
| Free Lifting Height | mm | 150 |
| Max.Lifting Height | mm | 3000 |
| Max.Height After Lifting | mm | 4045 |
| Overall Guard Height | mm | 2098 |
| Fork Size:Length X Width X Thickness | mm | 1070×100×40 |
| Overall Length(Fork Excluded) | mm | 2353 |
| Overall Width | mm | 1170 |
| Turning Radjus | mm | 2172 |
| Ground Clearance Of Mast | mm | 110 |
| Ground Clearance Of Wheel Base Center(Loaded) | mm | 105 |
| Right Angle Stacking Aisle Width (Pallet 1000×1000Mm），Clearance 200Mm | mm | 4040 |
| Right Angle Stacking Aisle Width (Pallet 1200×1200Mm）,Clearance 200Mm | mm | 4240 |
| Lateral Fork Adjustment Max./Min | mm | 1038/200 |
| Travelling Speed (Loaded/Unloaded) | km/h | 12/14 |
| Lifting Speed (Loaded/Unloaded） | mm/s | 320/450 |
| Lowering Speed | mm/s | <600 |
| Gradeability (Loaded) | % | 12 |
| Self Weight | Kg | 4270 |
| Battery Voltage /Capacity | V/Ah | 80/203 |
| Battery Weight | Kg | 750 |
| Driving Motor Power-60 Minutes | Kw | 11 |
| Lifting Motor Power(S315%) | Kw | 12 |
| Driving Motor Control Mode | Full AC | |
| Lifting Motor Control Mode | Full AC | |
| Service Brake/Parking Brake | Hydraulic /Mechanical | |
| Hydraulic System Working Pressure | Mpa | 17.5 |
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail.
