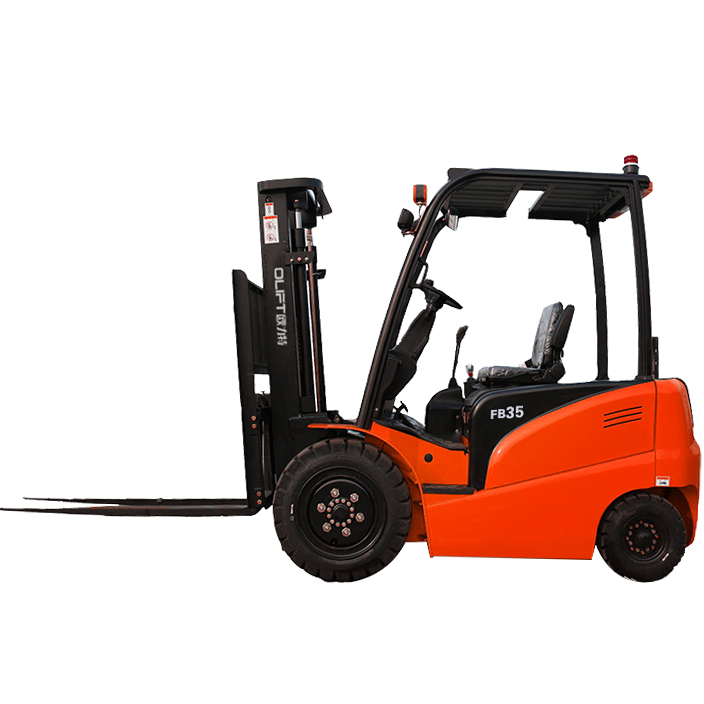

FB35 3.5 Ton Lithium-Ion Electric Forklift
The FB35 is a lithium-ion electric forklift for material handling applications. The published specification lists a rated capacity of 3500 kg, a standard lifting height of 3000 mm and an 80 V / 346 Ah battery.
Before You Request a Quote
Share the load dimensions, required lifting height, aisle width, operating time, charging conditions, any attachment requirements and destination. This information helps confirm whether the available configuration suits your application.
- Intelligent Safety: Electric lock + card start, BMS controller with real-time monitoring and 3-level fault protection. Seat auto-powers off when unoccupied, handbrake with lock and alarm.
- Comfort & Convenience: Standard luxury seat with good shock absorption. Reliable gear-type handbrake. Wide-vision mast, sturdy structure. Drawer-style battery pack for easy maintenance and quick replacement.
- Efficiency & Range: High-efficiency lithium iron phosphate battery with fast charging and long warranty. Motor-driven oil pump increases efficiency. Braking energy recovery system extends range and reduces wear.
- Body & Hydraulic System: New body design enhances load and range, adapts well to conditions. Split hydraulic oil tank reduces loss, easy to maintain, large capacity for attachments.
| Model | FB35 | |
| Rated Capacity | kg | 3500 |
| Load Center Distance | mm | 500 |
| Power Type | Lithium Battery | |
| Wheel Base | mm | 1600 |
| Wheel Number(Front/Rear) | 2×/2 | |
| Front Tread | mm | 1000 |
| Rear Tread | mm | 970 |
| Tyre(Front) | 28X9-15-12PR | |
| Tyre(Rear) | 18X7-8-14PR | |
| Front Overhang | mm | 475 |
| Mast Tilting Angle,Front/Rear | 6/12 | |
| Height With Mast Retraction | mm | 2025 |
| Free Lifting Height | mm | 150 |
| Max.Lifting Height | mm | 3000 |
| Max.Height After Lifting | mm | 4160 |
| Overall Guard Height | mm | 2092 |
| Fork Size:Length X Width X Thickness | mm | 1070×125×50 |
| Overall Length(Fork Excluded) | mm | 2507 |
| Overall Width | mm | 1220 |
| Turning Radjus | mm | 2360 |
| Ground Clearance Of Mast | mm | 120 |
| Ground Clearance Of Wheel Base Center(Loaded) | mm | 130 |
| Right Angle Stacking Aisle Width (Pallet 1000×1000Mm），Clearance 200Mm | mm | 4105 |
| Right Angle Stacking Aisle Width (Pallet 1200×1200Mm）,Clearance 200Mm | mm | 4305 |
| Lateral Fork Adjustment Max./Min | mm | 1100/250 |
| Travelling Speed (Loaded/Unloaded) | km/h | 14/15 |
| Lifting Speed (Loaded/Unloaded） | mm/s | 300/400 |
| Lowering Speed | mm/s | <600 |
| Gradeability (Loaded) | % | 14 |
| Self Weight | Kg | 5240 |
| Battery Voltage /Capacity | V/Ah | 80/346 |
| Battery Weight | Kg | 1170 |
| Driving Motor Power-60 Minutes | Kw | 16.6 |
| Lifting Motor Power(S315%) | Kw | 13.5 |
| Driving Motor Control Mode | Full AC | |
| Lifting Motor Control Mode | Full AC | |
| Service Brake/Parking Brake | Hydraulic /Mechanical | |
| Hydraulic System Working Pressure | Mpa | 17.5 |
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail.
Frequently Asked Questions
What rated capacity is listed for the FB35?
The published specification lists a rated capacity of 3500 kg. Confirm the load dimensions and load centre when requesting a quotation.
What lifting height is listed?
The published specification lists a maximum lifting height of 3000 mm. Confirm your required height and any overhead restrictions before ordering.
What battery information is listed?
The published specification lists an 80 V / 346 Ah battery. Confirm your operating time and charging conditions with the sales team.
