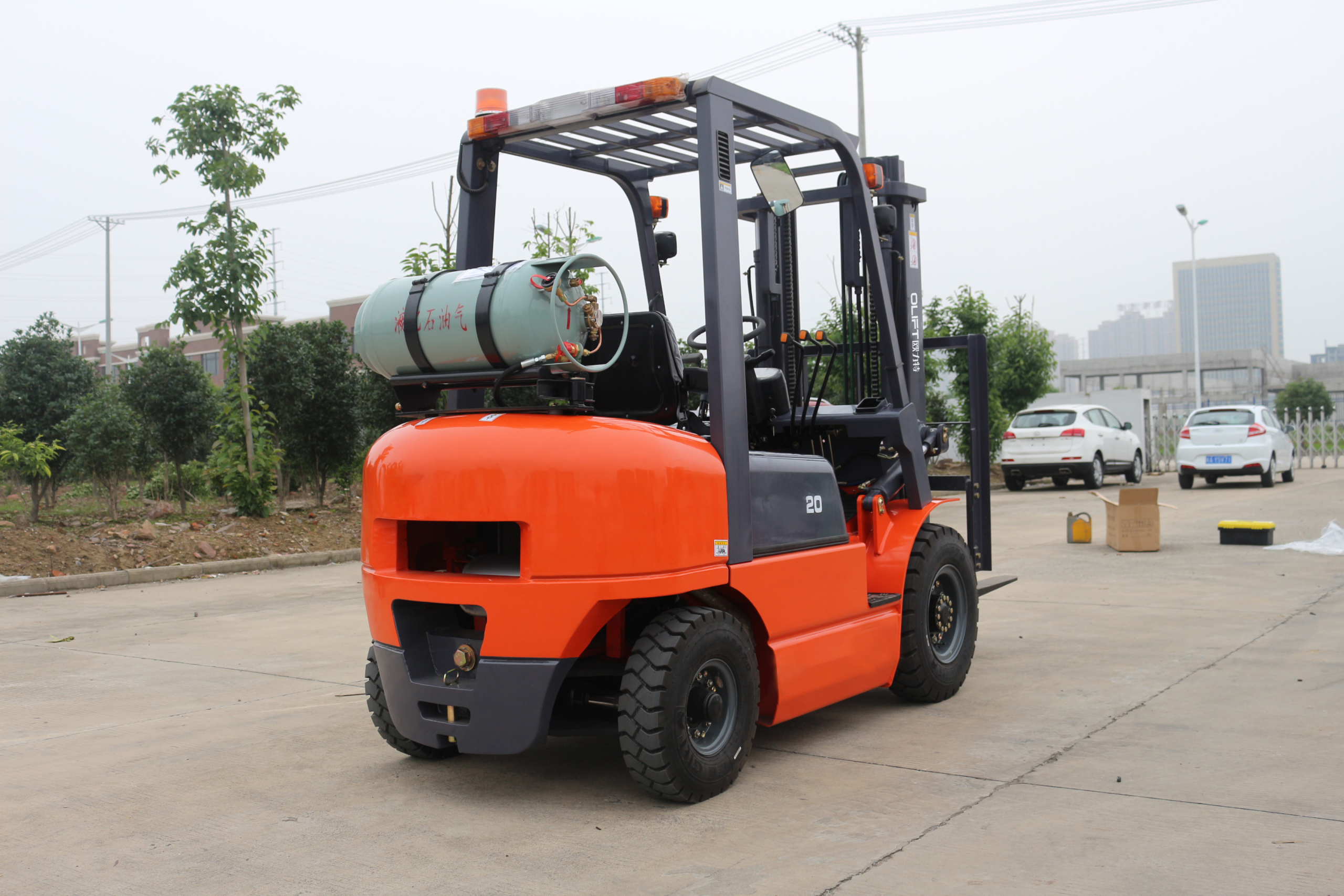

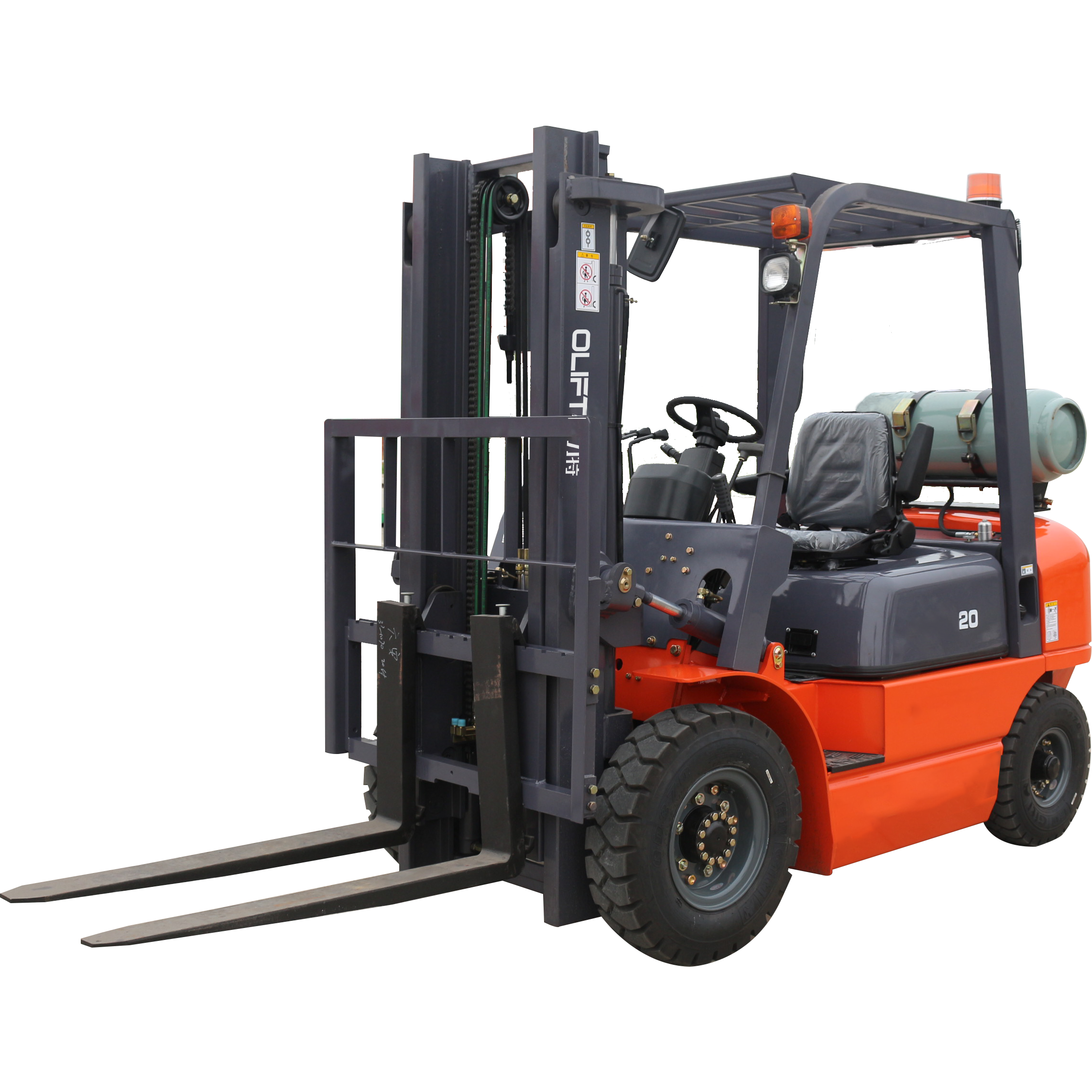

TG20 2 Ton LPG Forklift
The TG20 2 Ton LPG Forklift is an internal-combustion forklift for material handling applications. The published specification lists LPG power, a rated capacity of 2000 kg and a lifting height of 3000 mm.
Before You Request a Quote
Share the load dimensions, required lifting height, operating environment, fuel preference, attachment requirements and destination. This information helps confirm whether the available configuration suits your application.
| Model | TG20 | |||
| Power Type | LPG | |||
| Rated Capacity | kg | 2000 | ||
| Load Centre | mm | 500 | ||
| Lift Height | mm | 3000 | ||
| Fork Size | L×W×T | mm | 1070×120×40 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 445 | ||
| Ground Clearance（Bottom of mast） | mm | 80 | ||
| Overall Dimension | Length to face of fork(Without fork) | mm | 2355 | |
| Overall Width | mm | 1110 | ||
| Mast Lowered Height | mm | 2070 | ||
| Mast Extended Height(With backrest) | mm | 4070 | ||
| Overhead Guard Height | mm | 2080 | ||
| Turning Radius (outside) | mm | 2110 | ||
| Speed | Travel (Full load) | km/h | 17 | |
| Lifting (Full load) | mm/s | 530 | ||
| Max.Gradeability (No load/Full load) | % | 20 | ||
| Tire | Front | mm | 21*7*15 | |
| Rear | mm | 16(1/4)*6*11(1/4) | ||
| Wheelbase | mm | 1400 | ||
| Service weight | kg | 3445 | ||
| Battery | Voltage/Capacity | V/Ah | 12/80 | |
| Engine | Model | K25EPA | ||
| Manufacture | GCT (NISSAN) | |||
| Rated output/r.p.m. | kw | 42/2700 | ||
| Rated torque/r.p.m. | N·m | 185/1350 | ||
| No.of Cylinder | 4 | |||
| Bore×Stroke | mm | 89×100 | ||
| Displacement | cc | 2488 | ||
| Fuel Tank Capacity | L | 55 | ||
| Transmission | Type | Hydraulic | ||
| Stage | FWD/RVS | 1/1 | ||
Frequently Asked Questions
What rated capacity is listed?
The published specification lists a rated capacity of 2000 kg. Confirm the actual load dimensions and load centre before ordering.
What lifting height is listed?
The published specification lists a lift height of 3000 mm. Confirm your required lift height and overhead restrictions before ordering.
What should be included in an enquiry?
Please include the load, lifting height, operating environment, fuel preference, attachment requirements and delivery destination.
