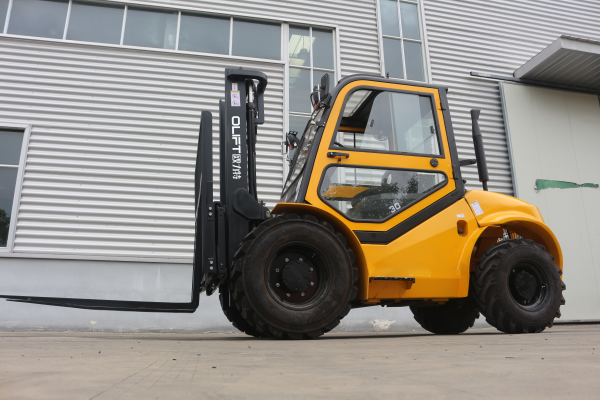

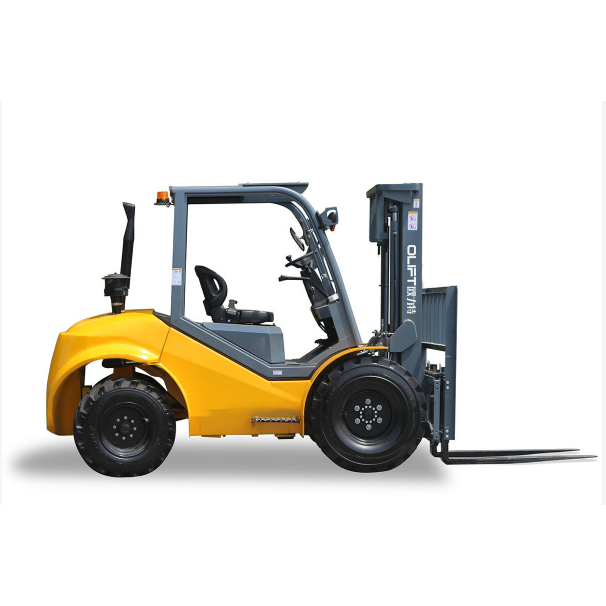

FD30R Rough Tterrain Forklift 3.0Ton

1.Rear wheel steering for heavy loads without tilting in turns, strong off-road performance

2.The articulation point is located in the rear design, small turning radius, stable center of gravity, not easy to rollover

3.Honeycomb cover design, good heat dissipation performance, easy to access and maintenance

4.Air filter top-mounted design, cleaner air on the top of the car, reducing the amount of dust inhalation and increasing the life of the engine.

5.Adopting larger traction seat, stronger and more stable pulling force.

6.Thickened bottom steel plate, thickness up to 30cm, compared with ordinary forklift trucks are more robust



Model FD30R
Rated Capacity kg 3000
Mast width mm 160
Max.Gradeability (No load/Full load) % <35°
Frame articulation mm Front200 Rear250
Weight kg 4390
Mast Tilt Angle(F/R) Deg 12°
Dimension mm 3700*1800*2450
Tires mm 20.5/70-16
Turning radius (outside tires) mm 3600
Lift Height mm 3000
Fork length (standard) mm 1220
Ground Clearance(Bottom of mast) mm 240
Mast Lowered Height mm 2240
Engine Yunnei490
Rated output/r.p.m. kw 42/2200-2400
Rated torque/r.p.m. N·m 220-450/1500-1800
No.of Cylinder 4
No.of Cylinder mm 102×115
Displacement L 3.76
Drive Model 4WD
Gearbox 265
