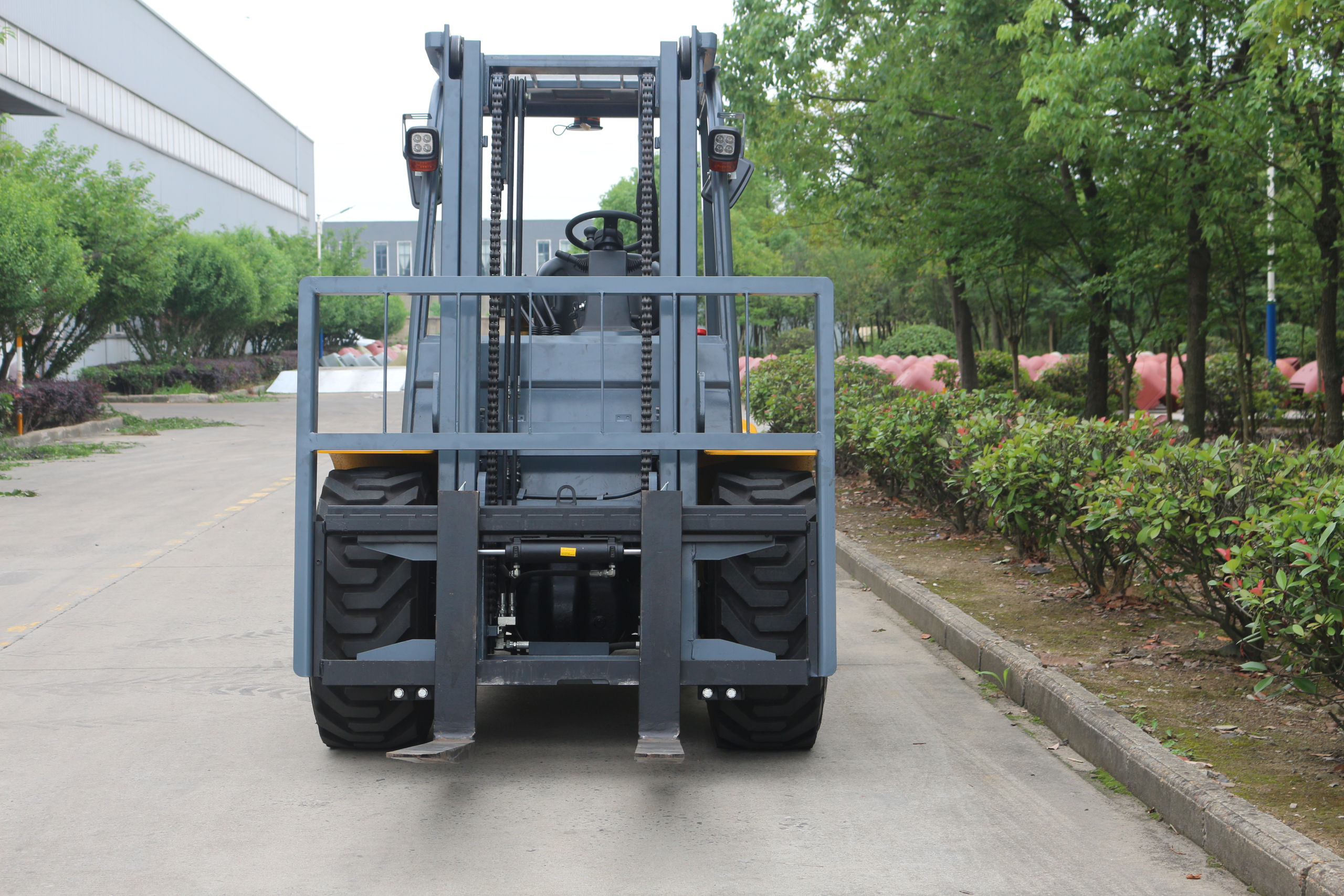

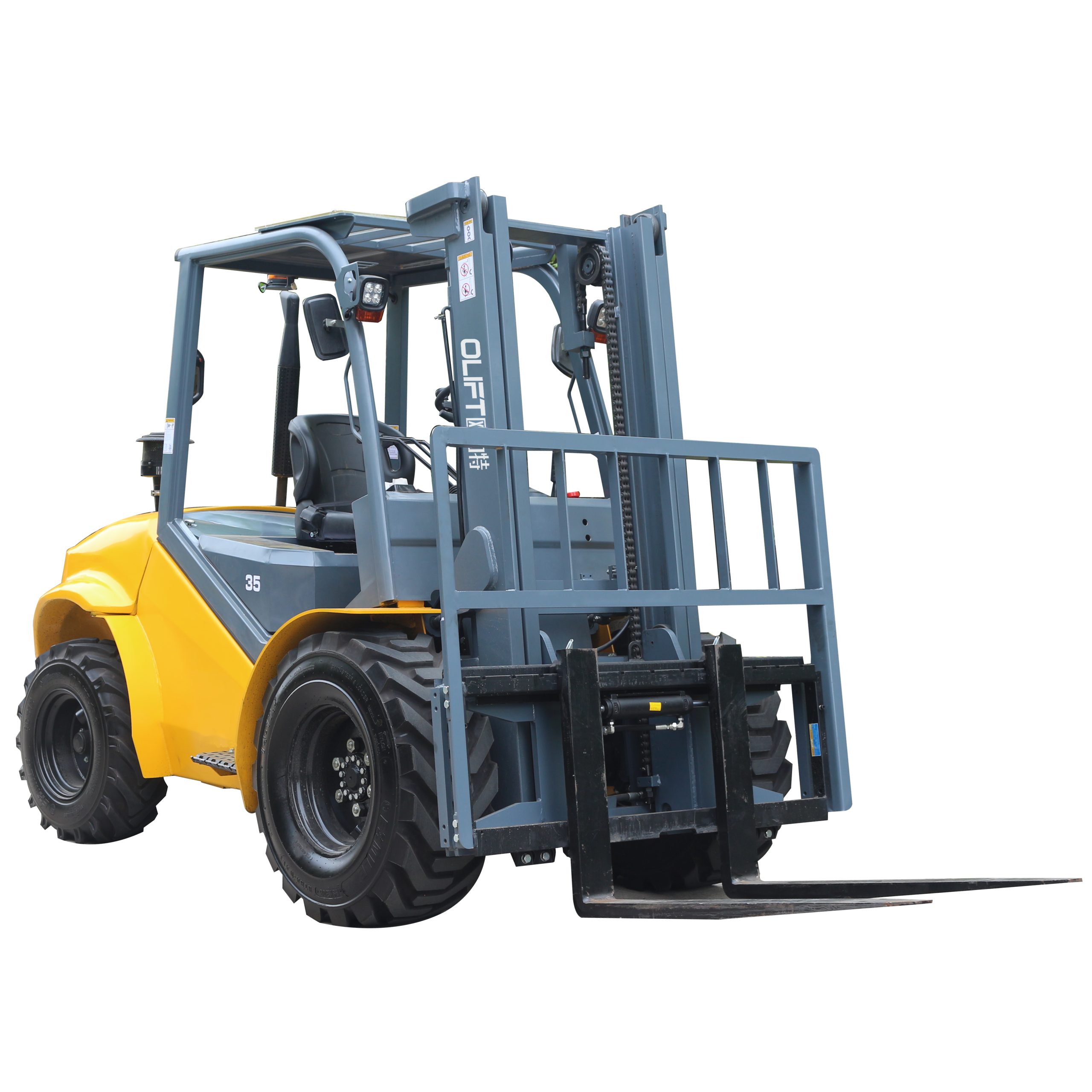

FD35R 3.5 Ton Rough Terrain Forklift
The FD35R is a rough terrain forklift for outdoor material handling applications. The published specification lists a rated capacity of 3500 kg, 4WD drive, 270 mm ground clearance and a lifting height of 3000 mm.
Before You Request a Quote
Share the load dimensions, required lifting height, ground condition, operating environment, attachment requirements and destination. This information helps confirm whether the available configuration suits your application.
| Model | FD35R | |
| Rated Capacity | kg | 3500 |
| Mast width | mm | 160 |
| Max.Gradeability (No load/Full load) | % | <35° |
| Frame articulation | mm | Front 200 Rear 250 |
| Weight | kg | 4400 |
| Mast Tilt Angle(F/R) | Deg | 12° |
| Dimension | mm | 3700*1800*2450 |
| Tires | mm | 20.5/70-16 |
| Turning radius (outside tires) | mm | 3600 |
| Lift Height | mm | 3000 |
| Fork length (standard) | mm | 1220 |
| Ground Clearance（Bottom of mast） | mm | 270 |
| Mast Lowered Height | mm | 2270 |

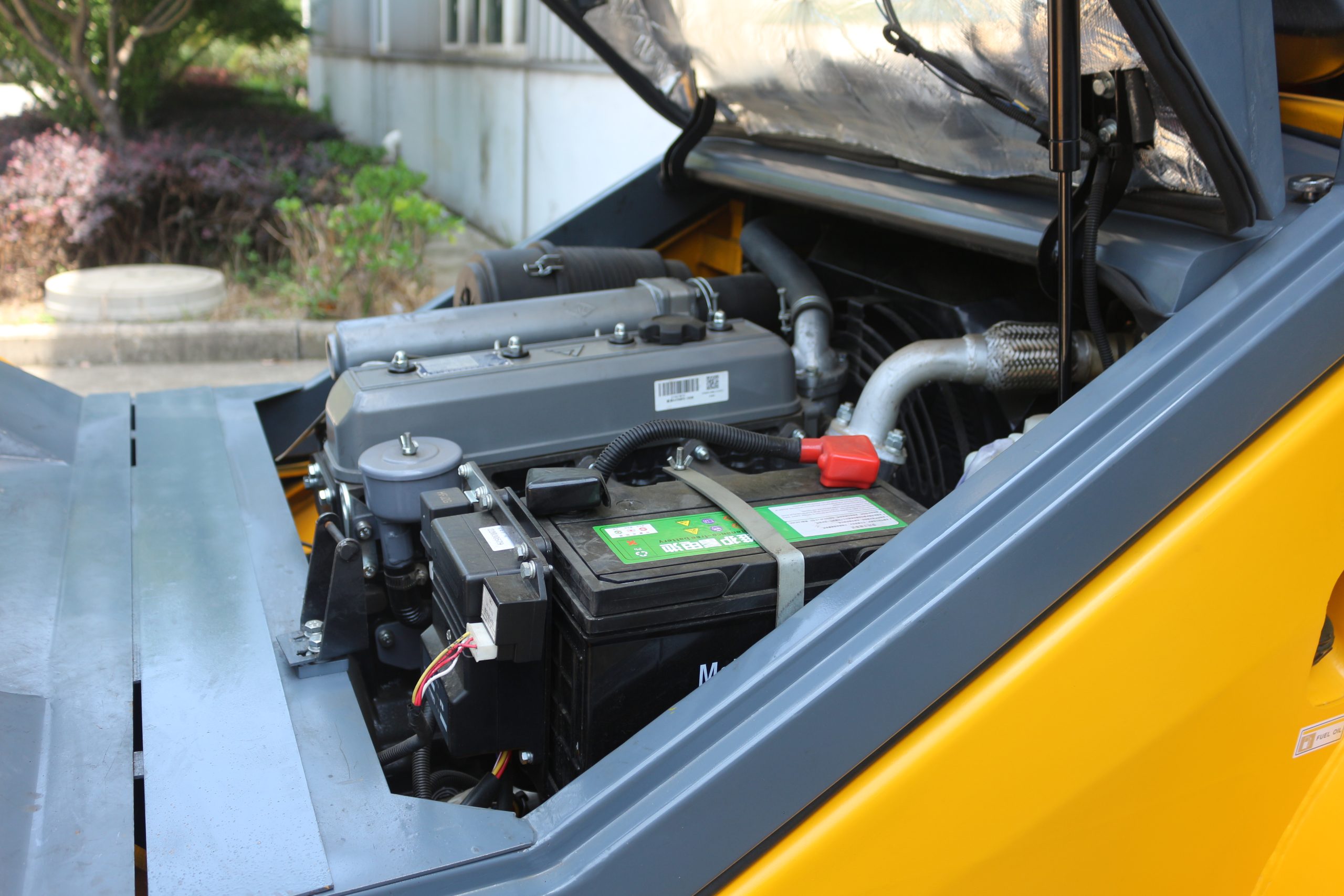

| Engine | Yunnei490 | |
| Rated output/r.p.m. | kw | 58/2200-2400 |
| Rated torque/r.p.m. | N·m | 220-450/1500-1800 |
| No.of Cylinder | 4 | |
| No.of Cylinder | mm | 102×115 |
| Displacement | L | 3.76 |
| Drive Model | 4WD | |
| Gearbox | 265 |
Frequently Asked Questions
What rated capacity is listed?
The published specification lists a rated capacity of 3500 kg. Confirm the actual load dimensions and load centre before ordering.
Is 4WD listed for this model?
The published specification lists 4WD drive. Share the actual ground condition and working area so the configuration can be reviewed for your application.
What lifting height is listed?
The published specification lists a lift height of 3000 mm. Confirm your required lift height and overhead restrictions before ordering.
