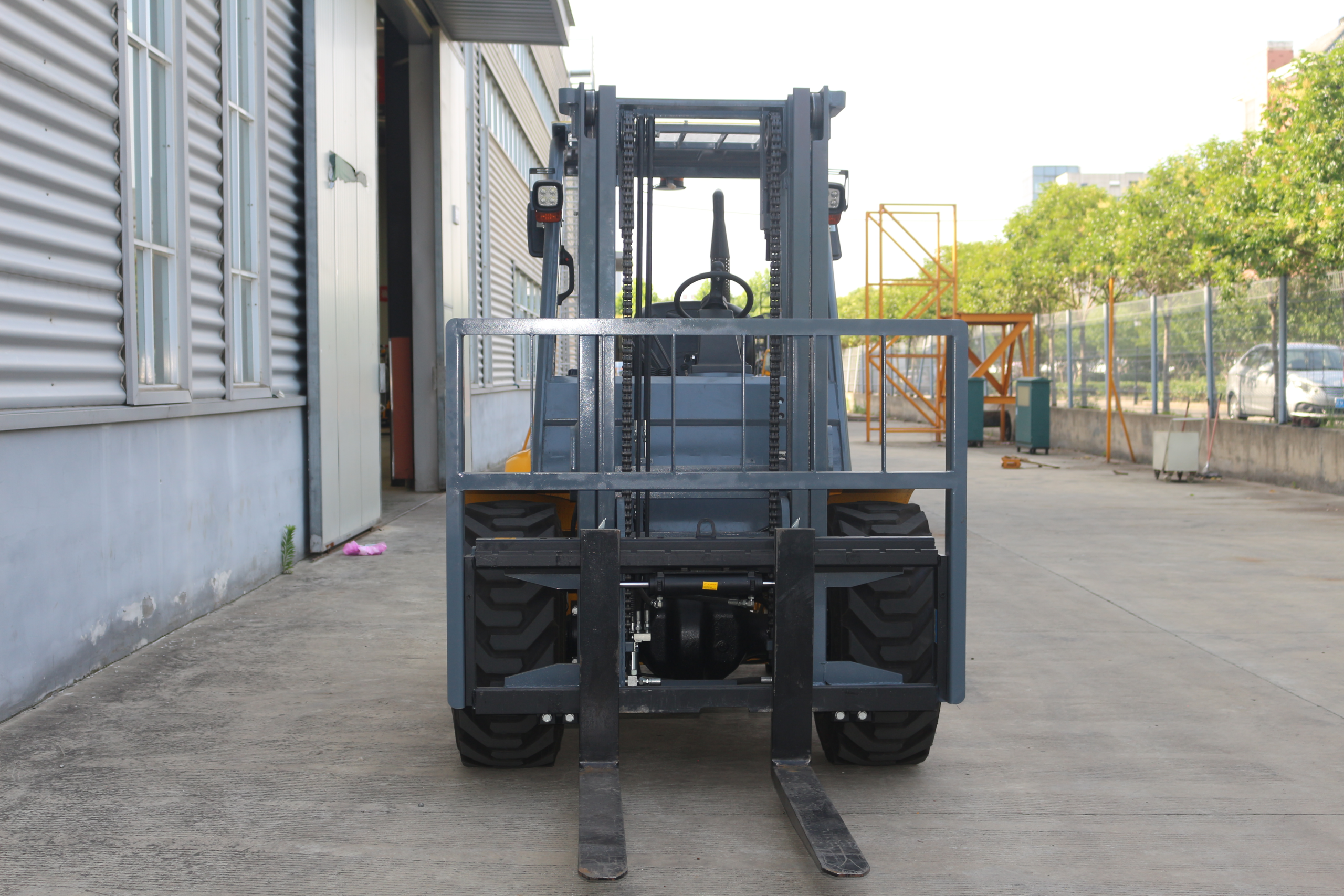

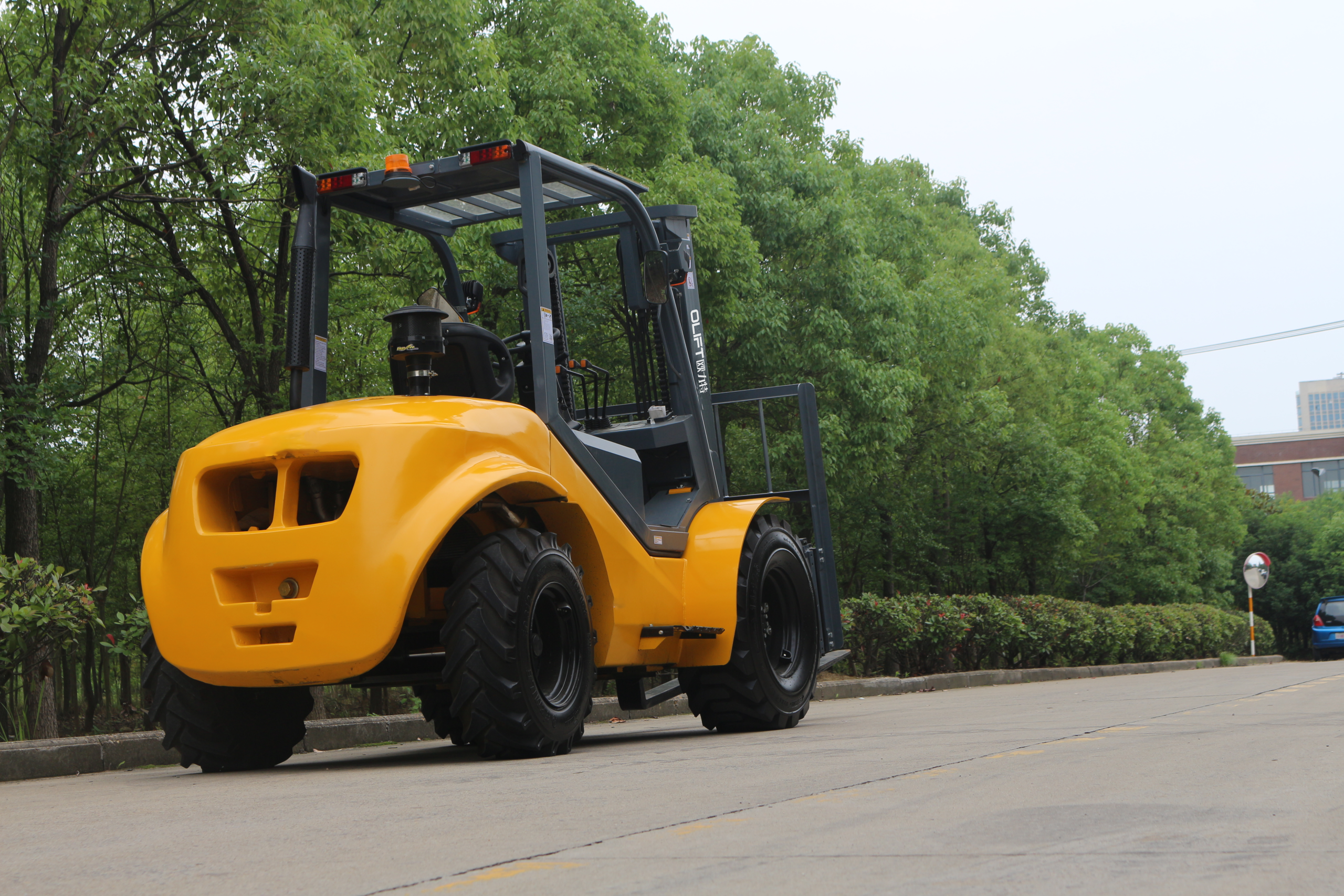

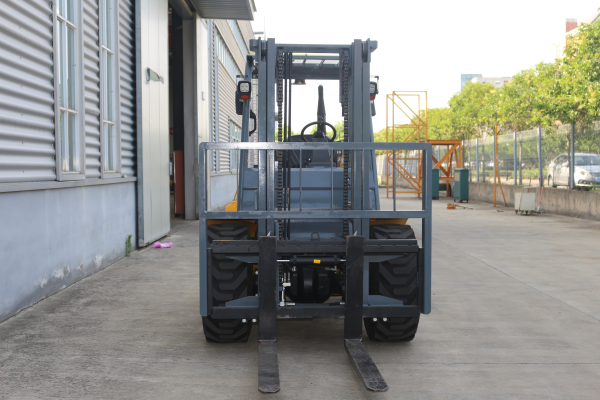

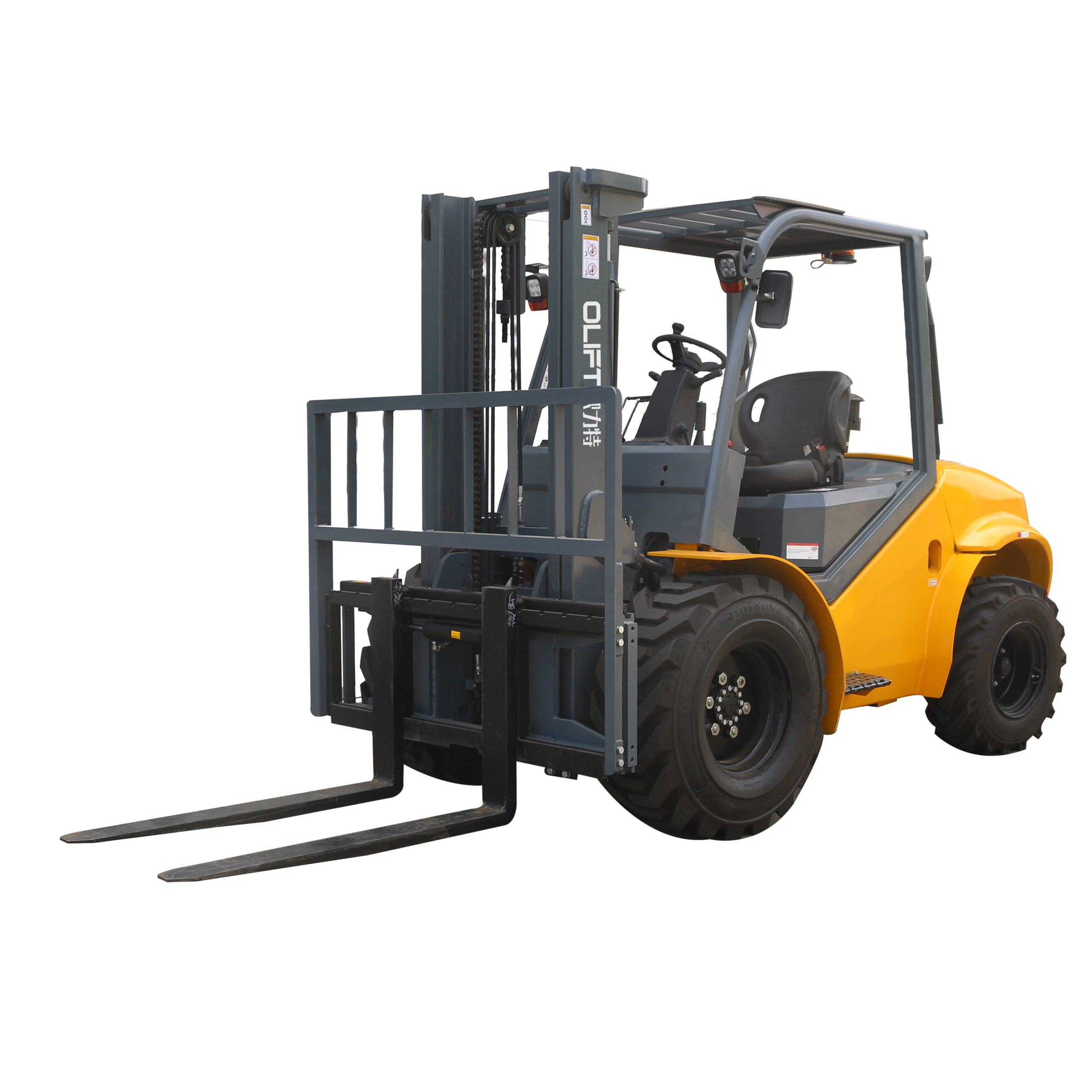

FD50R 5.0 Ton Rough Terrain Forklift
The FD50R is a 5.0 ton rough terrain forklift for outdoor material handling applications where ground conditions and access requirements should be considered before selecting equipment. The published specification lists 4WD drive, 330 mm ground clearance and a standard lift height of 3000 mm.
Before You Request a Quote
Share the maximum load, load dimensions, required lifting height, ground condition, operating environment, any attachment requirements and destination. This information helps confirm whether the available configuration suits your application.
| Model | FD50R | |
| Rated Capacity | kg | 5000 |
| Mast width | mm | 180 |
| Max.Gradeability (No load/Full load) | % | <35° |
| Frame articulation | mm | Front 250 Rear 300 |
| Weight | kg | 6000 |
| Mast Tilt Angle(F/R) | Deg | 12° |
| Dimension | mm | 4000*2080*2650 |
| Tires | mm | 16/70-24 |
| Turning radius (outside tires) | mm | 3900 |
| Lift Height | mm | 3000 |
| Fork length (standard) | mm | 1220 |
| Ground Clearance（Bottom of mast） | mm | 330 |
| Mast Lowered Height | mm | 2400 |
| Engine | Yunnei4102 | |
| Rated output/r.p.m. | kw | 76/3200 |
| Rated torque/r.p.m. | N·m | 285/1200-2800 |
| No.of Cylinder | 4 | |
| No.of Cylinder | mm | 81×97 |
| Displacement | L | 1.99 |
| Drive Model | 4WD | |
| Gearbox | 280 |
Frequently Asked Questions
What is the rated capacity of the FD50R?
The published specification lists a rated capacity of 5000 kg. Confirm the actual load dimensions, load centre and operating conditions when requesting a quotation.
Is the FD50R designed for outdoor work?
The published specification lists 4WD drive and 330 mm ground clearance. Share the actual ground condition, slope and working area so the configuration can be reviewed for your application.
What lifting height is listed for the standard configuration?
The published specification lists a lift height of 3000 mm. Please confirm your required lifting height and any overhead restrictions before ordering.
